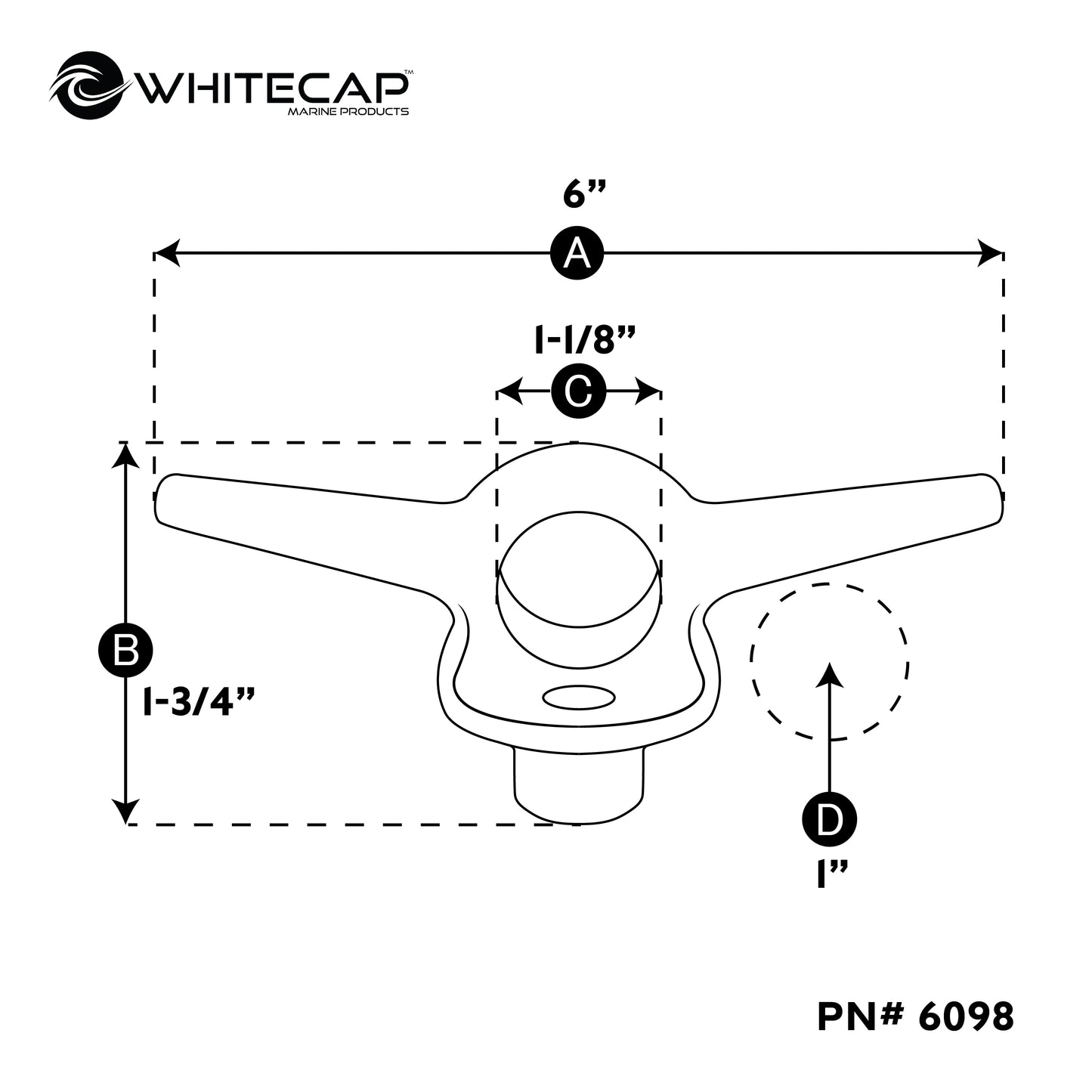

6" Lift Ring/Cleat

SKU: 6098

316 Stainless Steel



Max Load: 4000 lbs. (6098), 5000 lbs. (6099)

Eye Diameter: 1-1/8" (6098), 1-1/2" (6099)

* Angular Loading: Due to the many variances that arise, no guarantee of actual performance is possible for angular loading. Published figures, herein, are for guide purposes only.

* Max Working Loads: These figures have been determined on the basis of the load being applied in the direction of the axis of the shank for each Eye listed.

* For Bolt Size: 5/8-11.
